Elecraft PX3 Panadapter pour KX3

 High-performance companion panadapter for the Elecraft KX3 transceiver
 Full-color waterfall and spectrum displays, with fast sweep and excellent sensitivity
 Simple plug-and-play operation—no PC, soundcard, software drivers or setup required
 Weighs just 13 oz (0.37 kg); enclosure size: 5.4 x 3.4 x 1.7” (13.7 x 8.6 x 4.3 cm)


Portable, High-Performance Panadapter PX3

Our new PX3 Panadapter adds a visual dimension to signal hunting, with fast, real-time spectrum and waterfall displays of band activity. Its small size and weight make it ideal for travel or field use.

The PX3 is fully integrated with the Elecraft KX3, utilizing its serial control port and RX I/Q signals*. The panadapter tracks the KX3’s VFO frequency and filter settings via on-screen cursors. You can point and click on signals by rotating and tapping the PX3’s SELECT knob.

With its very wide dynamic range and frequency span of up to 200 kHz, the PX3 offers better performance than most PC sound cards. It’s also one of the most sensitive panadapters available, detecting signals down to the noise floor of the KX3. A PC or Mac can still be connected to the KX3 (via the PX3) for use with logging and control programs.


Advanced Features and Signal Processing

PX3 features include multi-pass signal averaging to pull out weak signals, peak detection to show total activity on the band, adjustable reference level, and amplitude range scaling. There’s also a full set of programmable switches to access often-used settings.

The PX3 has a wide supply voltage range (8-15 V) and low current drain (typ. 140 mA @ 13.8 V). It includes a comprehensive manual, and is available factory assembled or as a modular, no-soldering kit.

Planned future features include:
 CW/RTTY/PSK text display
 Use of the built-in USB port with a keyboard or flash drive
 SVGA monitor output option

* The PX3 uses the KX3’s baseband RX I/Q signals. It is not compatible with the 8.2-MHz I.F. signal from the K3.

Buy Here
http://www.elecraft.com/elecraft_prod_list.htm#px3

PX3-K    Panadapter for KX3     499.95
PX3-F    Panadapter for KX3     569.95

Shipping in June according to the latest messages.

PX3 Datasheet: http://www.elecraft.com/manual/PX3%20Data%20Sheet%20rev%20B1a.pdf

[VE2OK Jean]

Dans le dernier QST (avril 2014), il y a un article écrit par AA6E, Martin Ewing, sur la construction d'un Tiny Python Panadapter pour le KX3 à coût moindre!

Voici l'article:
http://www.arrl.org/files/file/QST/This%20Month%20in%20QST/April%202014/Ewing.pdf

Voici le site de l'auteur:
http://www.aa6e.net/

[VE2UGO Hugo]

D'autres précisions commencent à filtrer!

Apr 4 9:58 PM

A PC can work well, assuming it's fitted with a high-performance sound card, and that you're careful with cables and system grounding. This is sometimes hard to do, especially in a portable situation.

But the PX3 has a true 200-kHz span, and in most cases it will out-perform sound cards in terms of dynamic range. The PX3 also has very low noise thanks to an optimal choice of A-to-D converter (most of them have in-band noise humps that come up above the noise floor). It also has special input circuitry that rejects common-mode noise between the RX I/Q jacks on the radio and the PX3, without the need for isolation transformers.

Beyond that, there are some operators who prefer to have the spectral display right there where the action is, next to the radio. Turning on the PC can then be optional. The PC can still be used with the PX3 since we provide a way to daisy-chain both the control port (ACC1) and RX I/Q signals.

73,
Wayne
N6KR

[VE2UGO Hugo]

Shipping Status (May 6, 2014)

Now taking orders

First shipments will start at the end of June. New orders placed now will ship early August.

http://www.elecraft.com/elecraft_shipping_status.htm

[VE2UGO Hugo]

Wayne a publié une photo montrant le câblage entre le KX3, le PX3 et le KXPA100.

[VE2UGO Hugo]

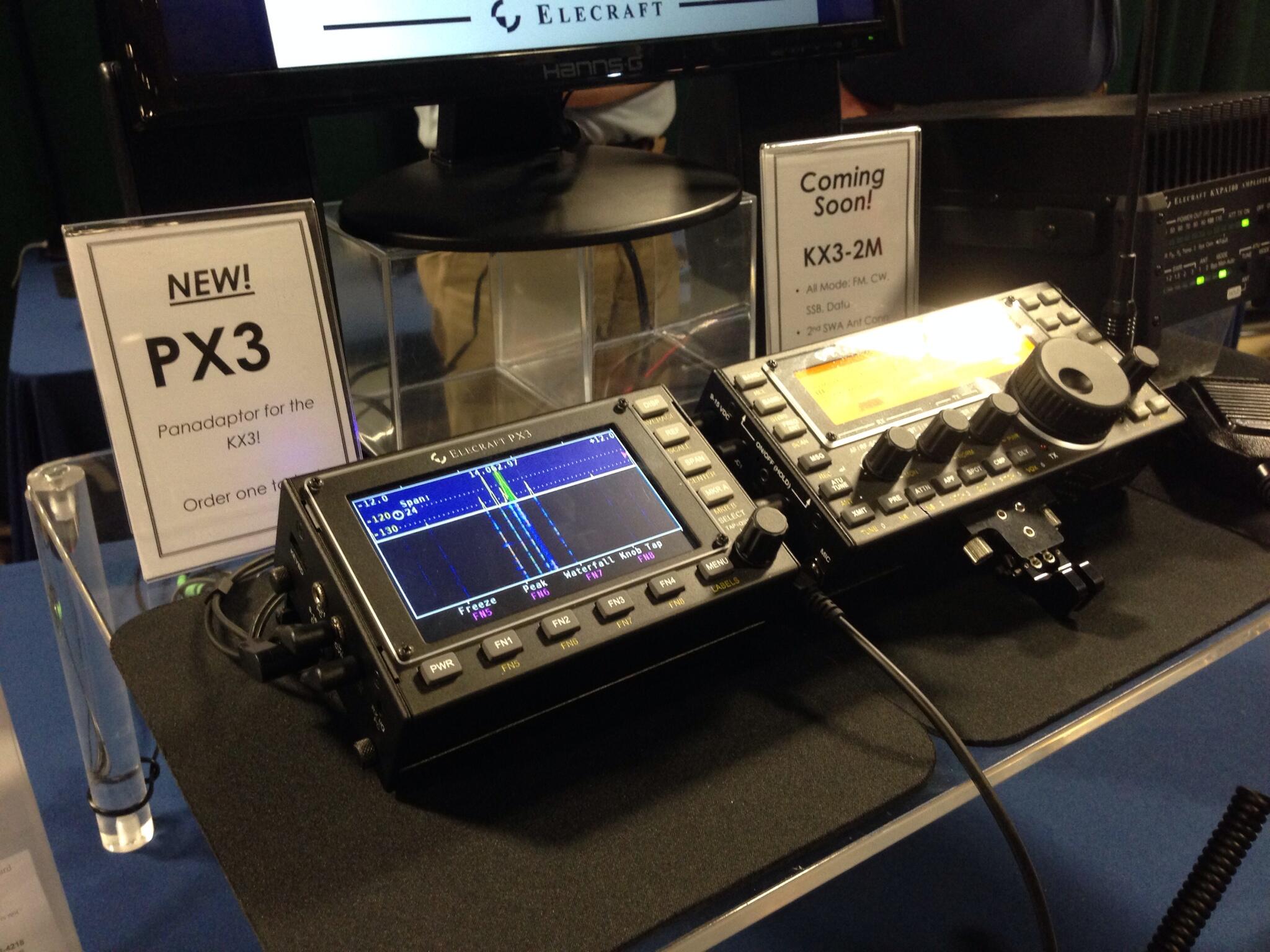

Jean-François, VA2SS, vient de publier une petite vidéo du PX3 lors de sa visite au Hamvention à Dayton 2014.

http://youtu.be/NU3Q0wwQu1g

Bon visionnement!

[VE2UGO Hugo]

Une autre vidéo montrant, entre autres, le PX3 en action à Dayton 2014!

http://youtu.be/LnMrQ7YbHpw

[VE2UGO Hugo]

Shipping Status (May 6, 2014)

Now taking orders

First shipments will start at the end of June. New orders placed now will ship early August.

http://www.elecraft.com/elecraft_shipping_status.htm

En date du 20 juin, prolongation de l'attente pour ceux ayant commandé le PX3!

Now taking orders

First shipments will start at the end of July. New orders placed now will ship late August.


Une nouvelle page juste pour le PX3: http://www.elecraft.com/PX3/px3.htm

[VE2UGO Hugo]

Shipping Status (May 6, 2014)

Now taking orders

First shipments will start at the end of June. New orders placed now will ship early August.

http://www.elecraft.com/elecraft_shipping_status.htm

En date du 20 juin, prolongation de l'attente pour ceux ayant commandé le PX3!

Now taking orders

First shipments will start at the end of July. New orders placed now will ship late August.


Une nouvelle page juste pour le PX3: http://www.elecraft.com/PX3/px3.htm

Nouvelle précision!
First shipments will start at the end of July to early August. New orders placed now will ship late August.

[VE2UGO Hugo]

Elecraft PX3 Panadapter pour KX3
Buy Here
http://www.elecraft.com/elecraft_prod_list.htm#px3

PX3-K    Panadapter for KX3     499.95
PX3-F    Panadapter for KX3     569.95

Mise à jour des prix!

http://www.elecraft.com/elecraft_prod_list.htm#px3

PX3-K    Panadapter for KX3           499.95
PX3-F    Panadapter for KX3           579.95

PWR12V1A-US    Power Supply for K3/0-Mini, 12 V, 1A, 100-240 V, (US Plug Only)     19.95
(The PX3 comes with a pigtail power cable standard. If desired, purchase the optional Power Supply module.)

[VE2UGO Hugo]

Shipping Status (August 5, 2014)

Now taking orders

Field Tester PX3s are shipping now (early Aug.), with production shipments starting mid-August.

New orders placed in early August will ship in Sept.

[VE2UGO Hugo]

Page officielle du PX3: http://www.elecraft.com/PX3/px3.htm

PX3 Panadapter FAQ: http://www.elecraft.com/manual/PX3_basics_FAQ%20rev%20E.htm

PX3 Installation FAQ: http://www.elecraft.com/manual/PX3_installation_FAQ.pdf

[VE2UGO Hugo]

Shipping Status (August 5, 2014)

Now taking orders

Field Tester PX3s are shipping now (early Aug.), with production shipments starting mid-August.

New orders placed in early August will ship in Sept.

Mise à jour
Shipping Status (August 27, 2014)

Now taking orders

We anticipate shipping the first PX3s late this week or early next week (9/2 - 9/5)

We apologize for the 2 week slip in schedule. We discovered several f/w issues during final testing that needed correction. We are now testing the new PX3 release f/w.

New orders placed in late August will ship in late Sept. to early Oct.[/i]

[VE2UGO Hugo]

PX3 Owners Manual  Rev A (Aug 25, 2014)
PX3 Owner's Manual

PX3 Owner's Manual Errata Rev A-4  (Sep 4,  2014)
PX3 Owners Manual Errata

Une mention indique que vous devez utiliser le nouveau firmware 2.19, qui est encore en version beta soit dit en passant!

KX3 FIRMWARE VERSION 2.19 REQUIRED
Your KX3 must be equipped with firmware version 2.19 (or later) or your PX3 will not operate properly. The latest KX3 firmware is available on the Elecraft web site. If you haven’t updated your KX3 firmware before, see FIRMWARE UPGRADES in your KX3 Owner’s manual for instructions. If you have already connected your PX3 to your KX3, you can update the KX3 firmware without disconnecting them as described under Updating KX3 Firmware on page 23 of this manual.

KX3 Beta Firmware Revision
MCU 2.19 / DSP 1.30, 9-04-2014[/b][/i]
ftp://ftp.elecraft.com/KX3/firmware/beta/kx3fw2r19.zip

 New Features:

PX3 SUPPORT: On a band change, the first command sent by the KX3 to the PX3 is “BN” (band number) to ensure correct handling of subsequent commands.(...)

* 8 septembre 2014 Maintenant en version officielle: http://www.elecraft.com/KX3/KX3_software.htm

[VE2UGO Hugo]

PX3s have started shipping

PX3-F orders started shipping this week. We are currently shipping PX3-F domestic orders from 4/4/14.

We will be slowly ramping up over the next few weeks. Prior to shipping you will receive an email to confirm your order. PX3-K and international orders will begin shipping within the next 2-3 weeks.

New orders placed now will ship in mid-late October.

We appreciate your patience and ask that you not contact sales or support to find out your place in line. This slows down are processing and we want to get these out as quickly as possible.

We are unable to give you an exact place or shipping date at this time.
Order dates will be updated on the status page as we email. Remember the early days have the most orders per day and will take longer to get through.

PS:
Elecraft Year End inventory Sept. 11-15.

During this time we will not be able to ship orders. Our last day of shipping will be Wednesday, Sept. 10 and we will resume shipping
Tuesday Sept. 16th. We will make every effort to ship all orders placed prior to Sept. 10 before inventory.
